1. Instructions

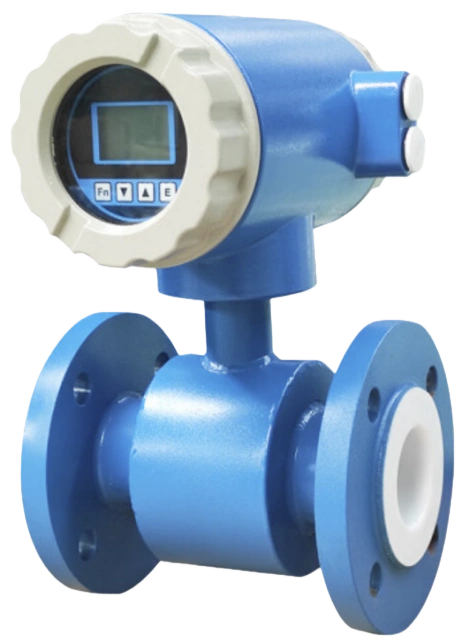

The DN100 is a intelligent electromagnetic flowmeter manufactured with advanced technology. Its electromagnetic transmitter core is equipped with a high-speed central processing unit, ensuring fast computation, high precision, and reliable measurement performance. The converter circuit design incorporates internationally advanced technology, featuring an input impedance as high as 10^15 ohms and a common-mode rejection ratio better than 100 dB. It offers superior immunity to external interference and 60Hz/50Hz interference, with a rejection capability exceeding 90 dB, enabling accurate measurement of fluid media with lower conductivity. The sensor utilizes non-uniform magnetic field technology and a special magnetic circuit structure, providing stable and reliable magnetic performance while reducing size and weight, resulting in a compact flowmeter design.

2. Function

2.1. Data Acquisition Function
The flowmeter can automatically collect data such as instantaneous flow rate and total accumulated flow, as well as information including device battery level, system parameters, and signal strength.

2.2. Pressure Measurement Function
Integrated pressure measurement provides reliable leak detection capability while avoiding the need for secondary pipeline openings for pressure extraction.

2.3. Data Transmission Function
The flowmeter is capable of transmitting monitored data to a cloud platform via RS485.

2.4. Remote Device Operation and Maintenance
Remote operation and maintenance management of the device can be performed, monitoring the entire operational status in real time.
