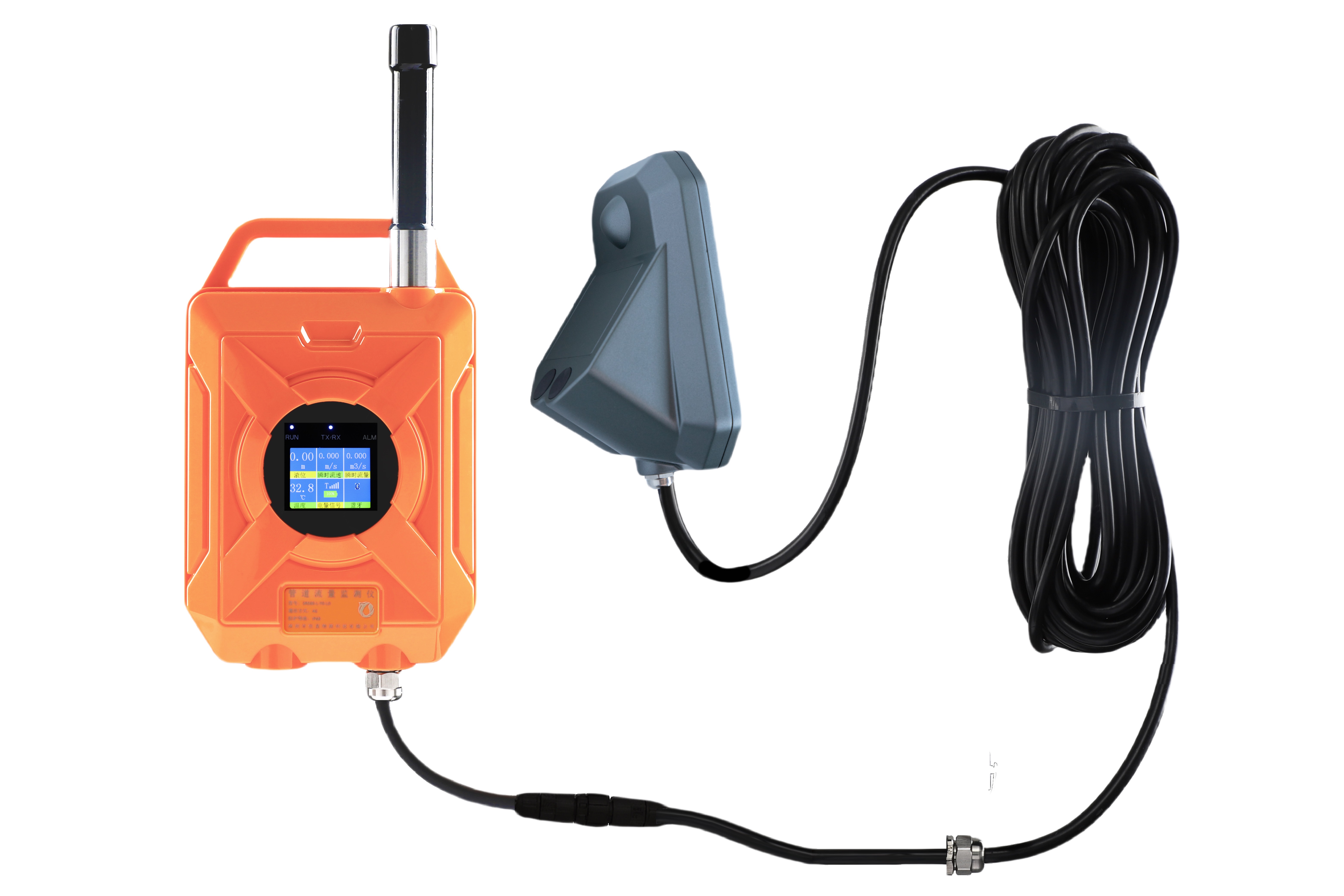

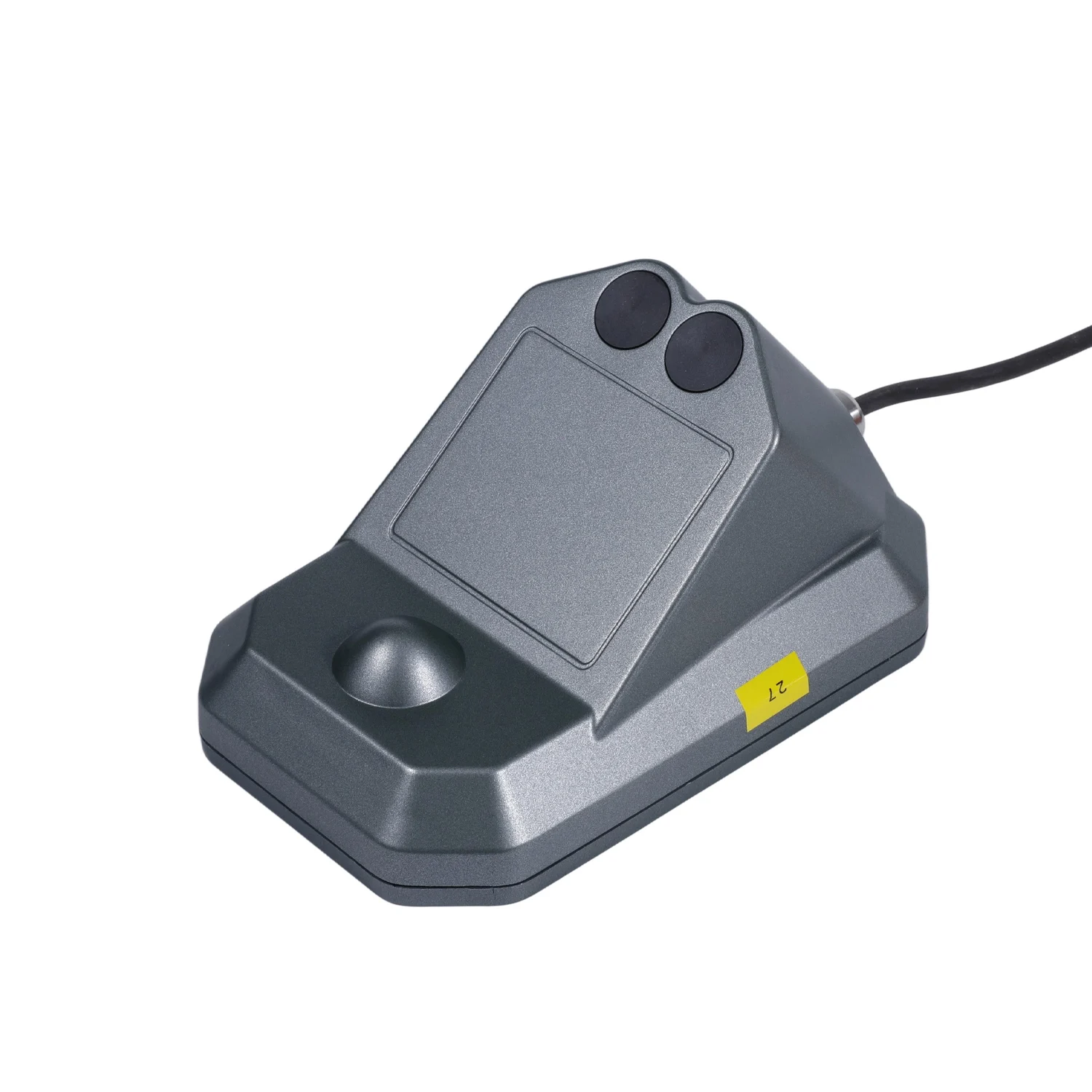

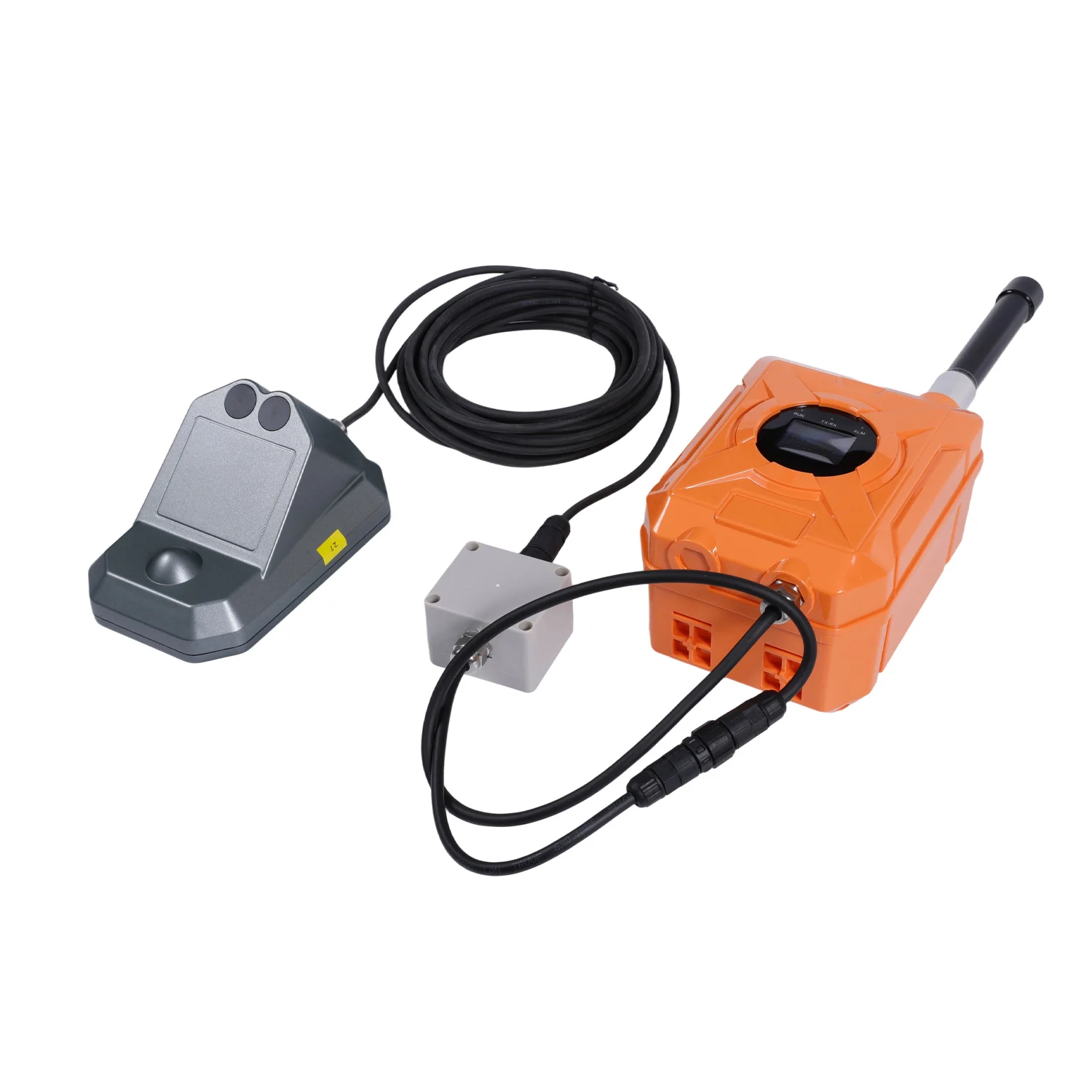

1. Product introduction

The device featuring battery-powered, ultra-low power consumption, IP68-rated and wireless communication. Suitable for monitoring sites with no power supply availability and in harsh environments (e.g., pipeline or manholes), and it can be measured for both full-pipe and non-full-pipe.
Users can view real-time monitoring data via the device's high-definition LCD screen, while the wireless communication capability enables remote data monitoring through a cloud-based platform. Operating on battery power, the device features easy installation, extended battery lifespan, and stable operation.

2. Functions

2.1 Data sampling

The device is capable of automatically collecting flow velocity, water level and flow rate, periodically transmitting the data to the flow monitoring system platform via wireless communication,with additional device status reporting including battery level, system parameters, and signal strength.

2.2 Parameter configuration

Parameter configurations can be deployed according to operational requirements. For specific data fields, refer to the "Configuration Data" section in Appendix

2.3 External wake-up

During on-site debugging, when manual data reporting or data viewing is required, swipe a magnet over the upper-right corner of the screen to wake up the device for data sampling. This action will simultaneously update the display panel content and trigger data reporting.

2.4 Data breakpoint resume

The manhole water level monitor employs an intelligent design with a high-capacity buffer

and dynamic partitioning technology. It stores data during network outages and automatically uploads the retained data when communication resumes, ensuring continuity of monitoring system data.

2.5 Remote operation and maintenance

The device can be integrated with a remote O&M platform, enabling remote operation and maintenance of the device with full-process status monitoring, ensure the device uninterrupted normal operation

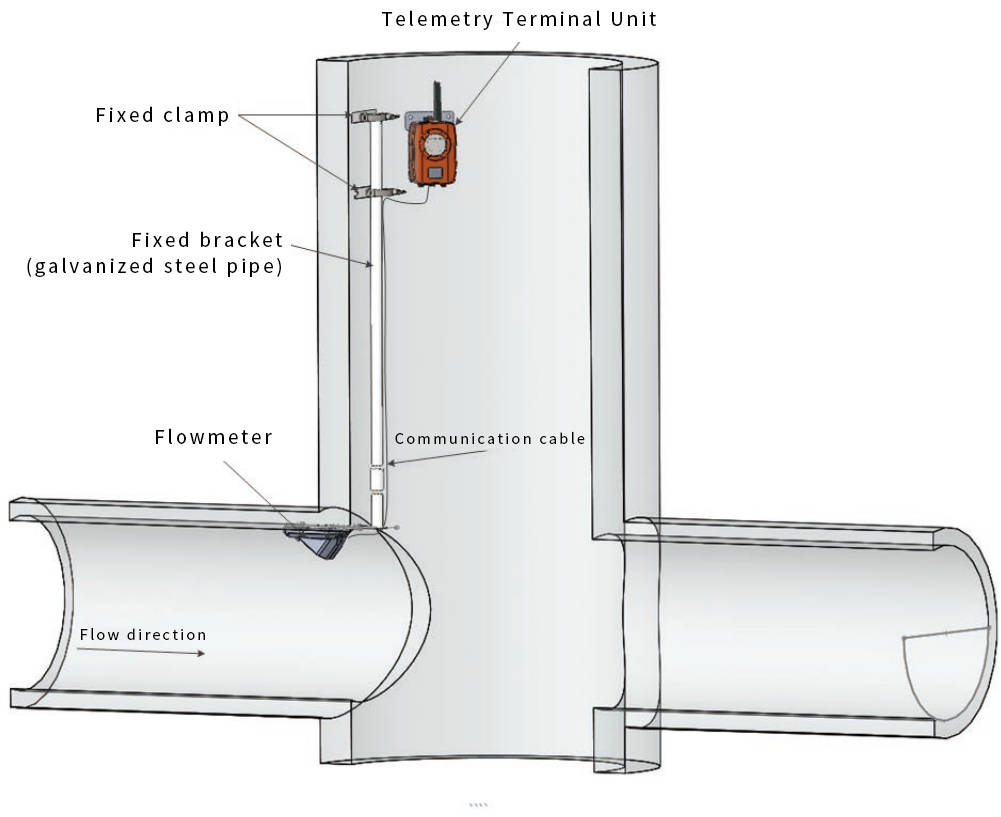

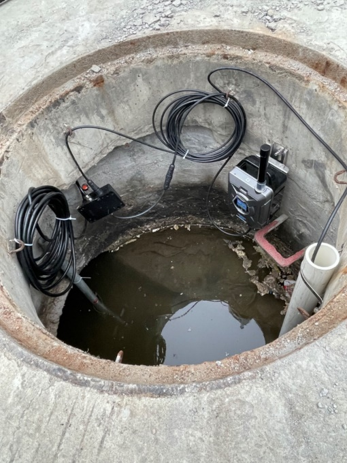

3. Installation Instructions

3.1 Installation Preparation

Prior to equipment installation, ensure all required materials and accessories are prepared, including drill bits, magnets, mounting brackets, hand-held drills, and angle grinders.

3.2 Installation & Commissioning

For detailed commissioning procedures, reference may be made to the Equipment Installation Implementation Plan. To obtain this document, please contact the designated sales representative

Appendix 1：Parameter list

System parameter
Item name	Data type	R/W	Range	Code	Default Parameter
Hardware version	Model str, max 20 bytes	R	20Byte	0x000B
Software version	Model str, max 20 bytes	R	20Byte	0x0002
SIM card ICCID	Model str, fixed 20 bytes	R	20Byte	0x013A
Signal strength	Int data	R	0-31	0x013C
Bit error rate	Int data, Low-byte bit error rate range 0~7(bits）	R	0-7	0x013CA
Battery level	uint8, 1byte（range 0~100, unit %）	R	0-100	0x0165
Real-time	uint8, 6 bytes Model BCD	R	6Byte	0x0404
Issued data
Altitude compensation	uint16，unit cm	R/W	0-65535	0x0118
Cross-sectional Shape	uint8，0x01 circle、0x02 square、0x03 trapezium	R/W	1Byte	0x0112	Circle
Diameter at Cross-section	uint16，unit cm	R/W	0-65535	0x0113	80
Warning height	uint16，unit mm	R/W	0-65535	0x0028	6000mm
Alarm height	uint16，unit mm	R/W	0-65535	0x0029	8000mm
Sampling Interval	uint16，unit: s	R/W	60-65535	0x0401	900s
Transmission Interval	uint16，unit: s	R/W	300-65535	0x0402	14400s
Early-warning Sampling Interval	uint16，unit: s	R/W	60-65535	0x002A	300s
Early-warning transmission Interval	uint16，unit: s	R/W	300-65535	0x002B	3600s
Alert Sampling Interval	uint16，unit: s	R/W	60-65535	0x002C	300s
Alert upload Interval	uint16，unit: s	R/W	300-65535	0x002D	3600s
Sampling data
Item name	Data type	R/W		Code
Temperature	Float, unit：℃	R		0x0502
Real-time voltage	Float, unit:V	R		0x0501
Positive cumulative flow	Float,unit: m³	R		0x0590
Flow velocity	Float, unit: m/s	R		0x0593
Water level	Float, unit: m	R		0x05D1
Instantaneous flow rate	Float, unit: m³/s	R		0x0592

1. Wide range of application scenarios
2. Supports real-time alerting and remote device configuration
4. Ultra-low power consumption, extended battery lifespan
4. Protection class IP68, waterproof and damp-proof
5. High sensitivity and strong anti-interference capability

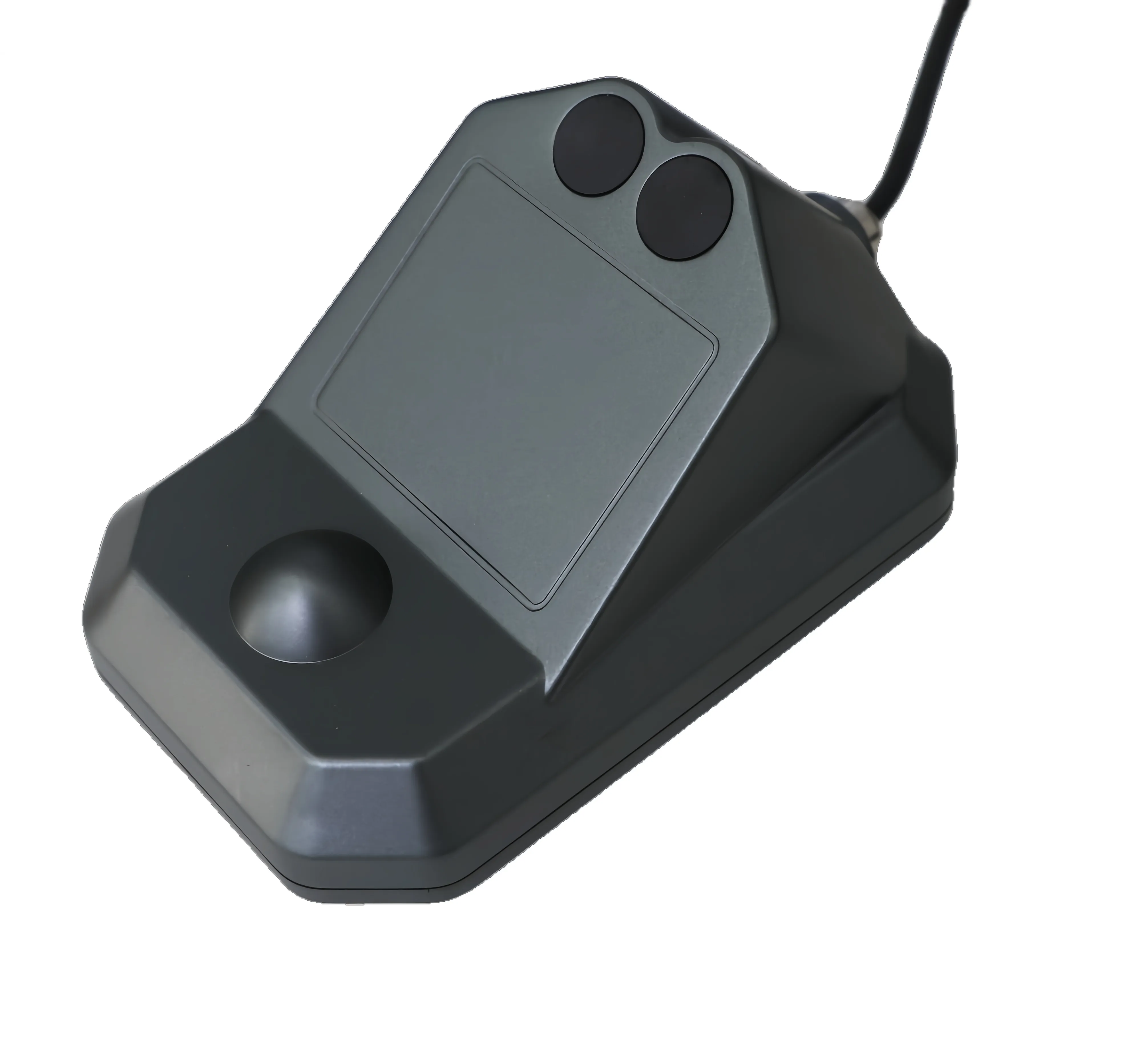

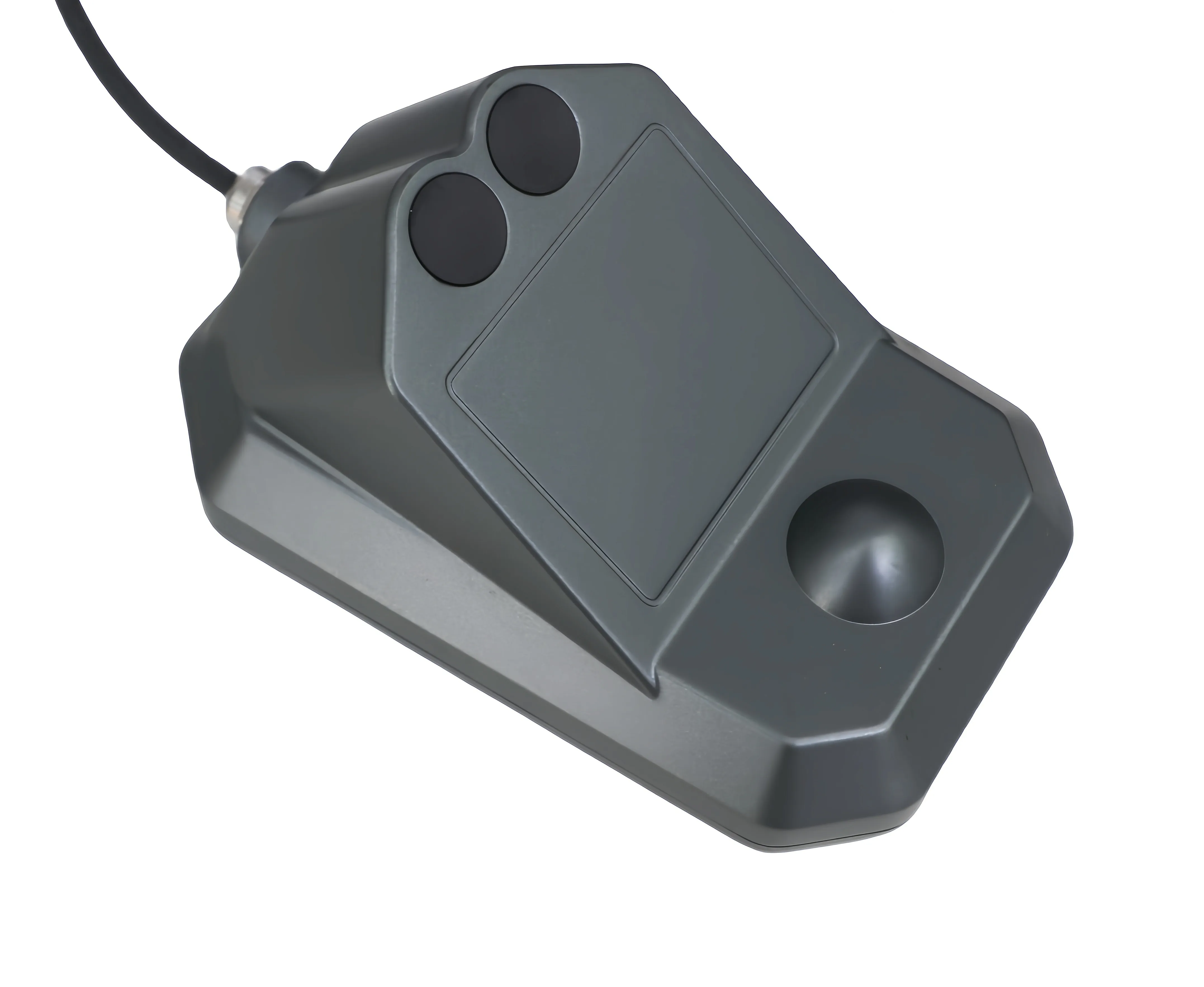

6. The system features automatic switching between millimeter-wave radar Doppler and ultrasonic Doppler flow measurement modes, adapting to diverse complex application scenarios including both full-pipe and non-full-pipe conditions
7. Effectively reduces the impact of sediment accumulation, debris, and other factors on the equipment, thereby reducing maintenance frequency

No	Item name	Parameter
Ultrasonic flow velocity parameter
1	Measurement range	0.02~6m/s（customizable）Bidirectional flow velocity measurement
2	Resolution	1mm/s
3	Measurement precision	±1%FS
Water level parameter
4	Measurement range	0~10m
5	Measurement precision	±1mm
6	Measurement beam angle	4°
7	Measurement frequency	120GHz
Radar flow velocity parameter
8	Measurement range	0.03~20m/s
9	Measurement precision	±1%FS
10	Measurement frequency	24GHz
11	Measurement beam angle	12°

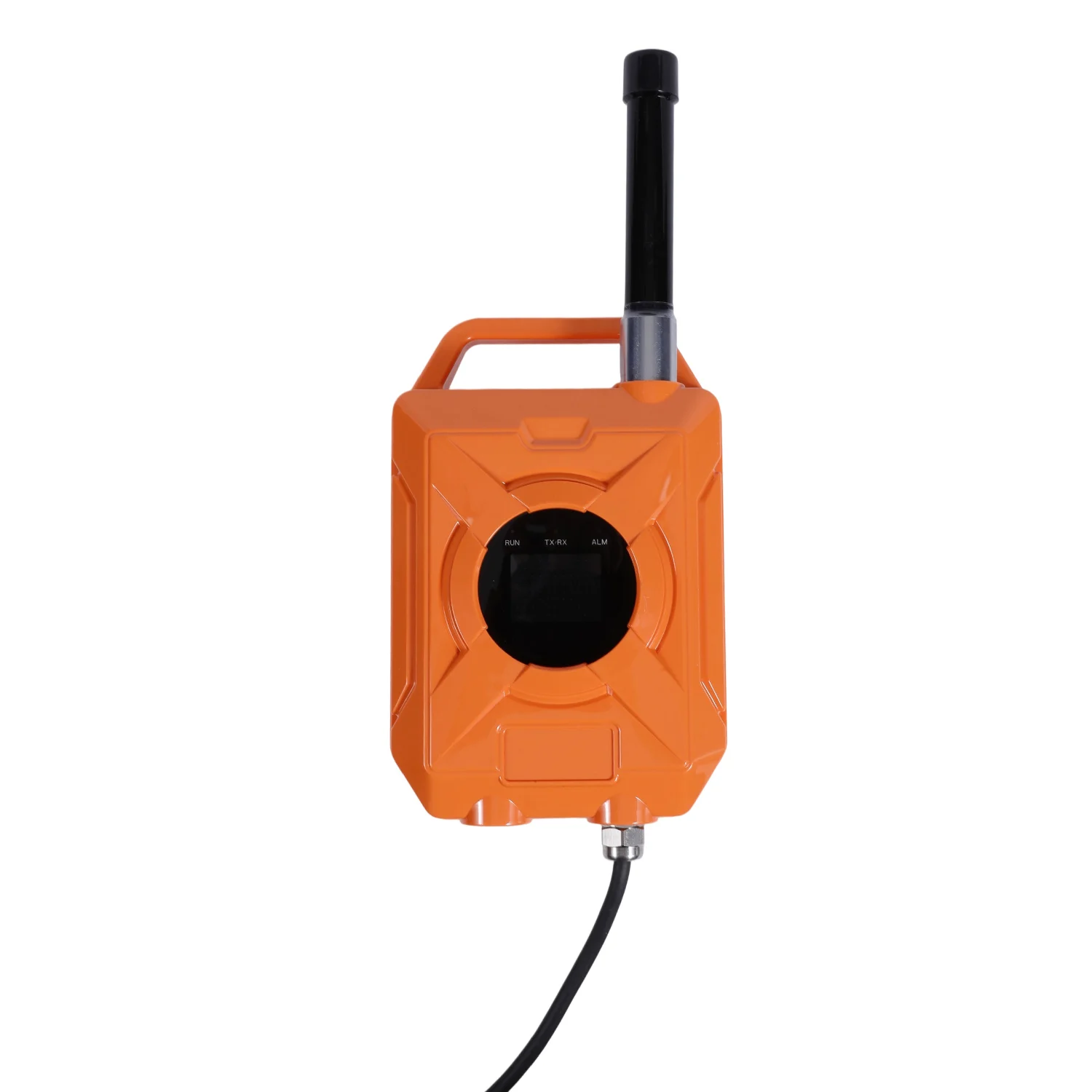

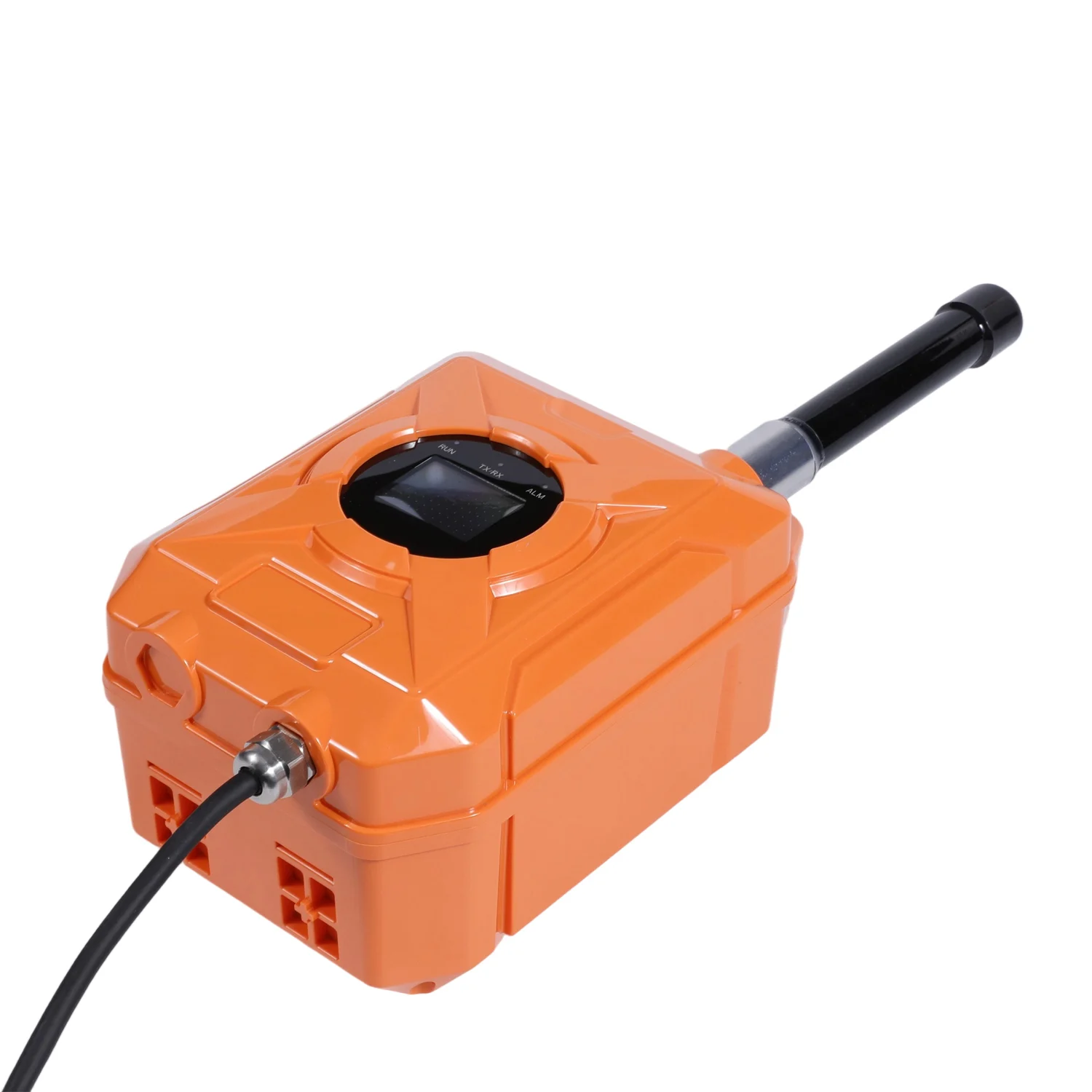

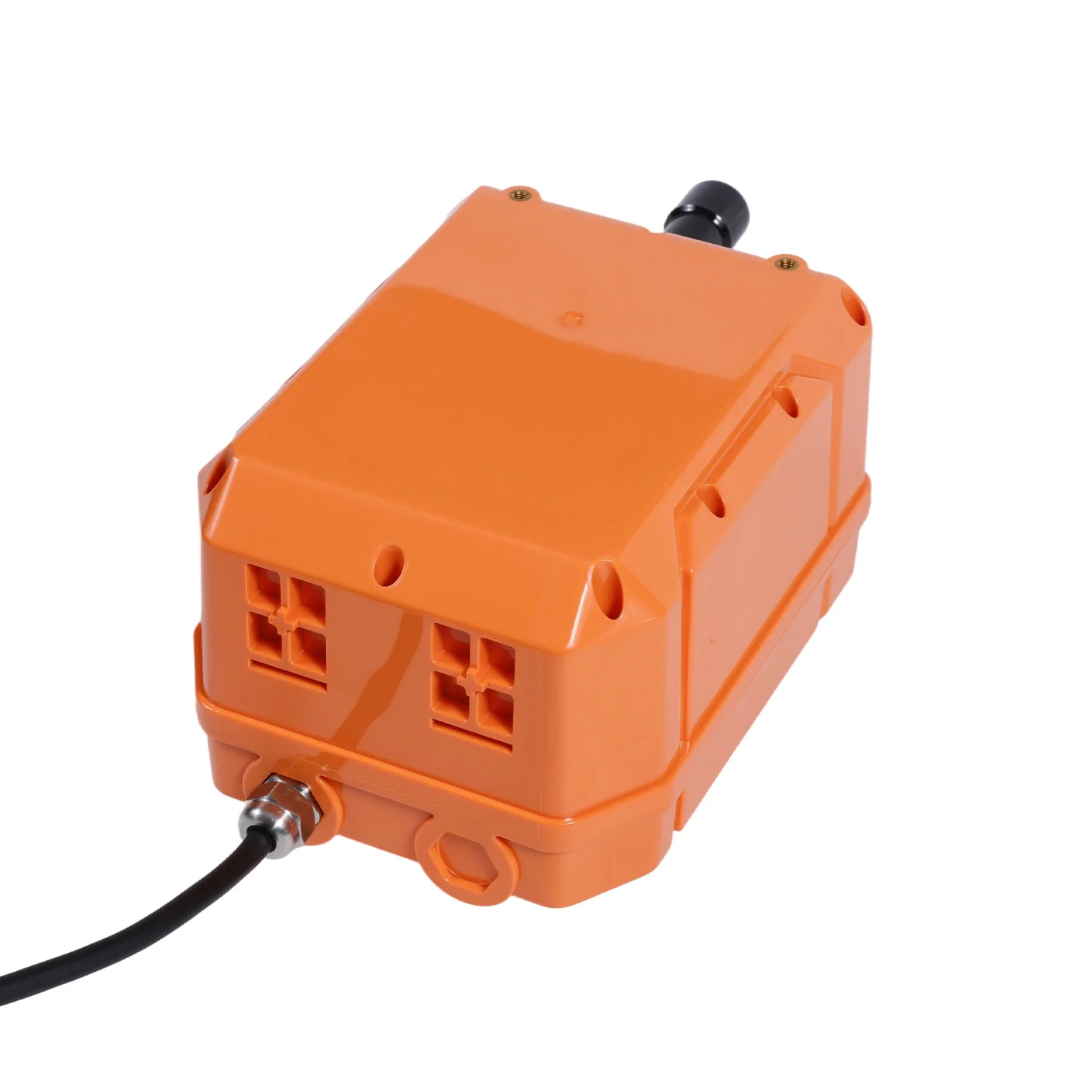

Telemetry terminal unit parameter
13	Communication method	4G
14	Communication protocol	MQTT
15	Power supply mode	Battery
16	Battery lifespan	≥3 years
17	Battery capacity	76AH
18	Transmission interval	300~65535s
19	Sampling interval	60~65535s
20	Data storage	128Mbit
21	Installation method	Portable
22	Wake up method	Intelligent wake-up、External non-contact wake-up
23	Data docking	Easy-to-integrate SDK data interface solution
