The flow monitoring station is a smart river flow monitoring instrument featuring integrated design. The system is composed of a river channel radar flowmeter, telemetry terminal unit, and other components. The radar flowmeter utilizes advanced K-band planar radar technology to measure water flow velocity and water level in a non-contact manner. Through built-in software algorithms, it calculates and outputs real-time cross-sectional flow rate and total accumulated flow. This device is suitable for applications including rivers, irrigation canals, underground drainage networks, and flood warning systems.

2. Function

2.1 Multi-parameters monitoring Real-time online monitoring of river level and flow
2.2 Data breakpoint resume transmission

Provides real-time & historical data storage and transmission capabilities, supporting data breakpoint resume transmission
2.3 Multiple operating modes
Supports real-time monitoring and data query, with online configuration of sampling duration, sampling interval, and transmission interval
2.4 Remote configuration
Supports remote configuration via user-friendly software tools, enabling parameter adjustments without on-site access

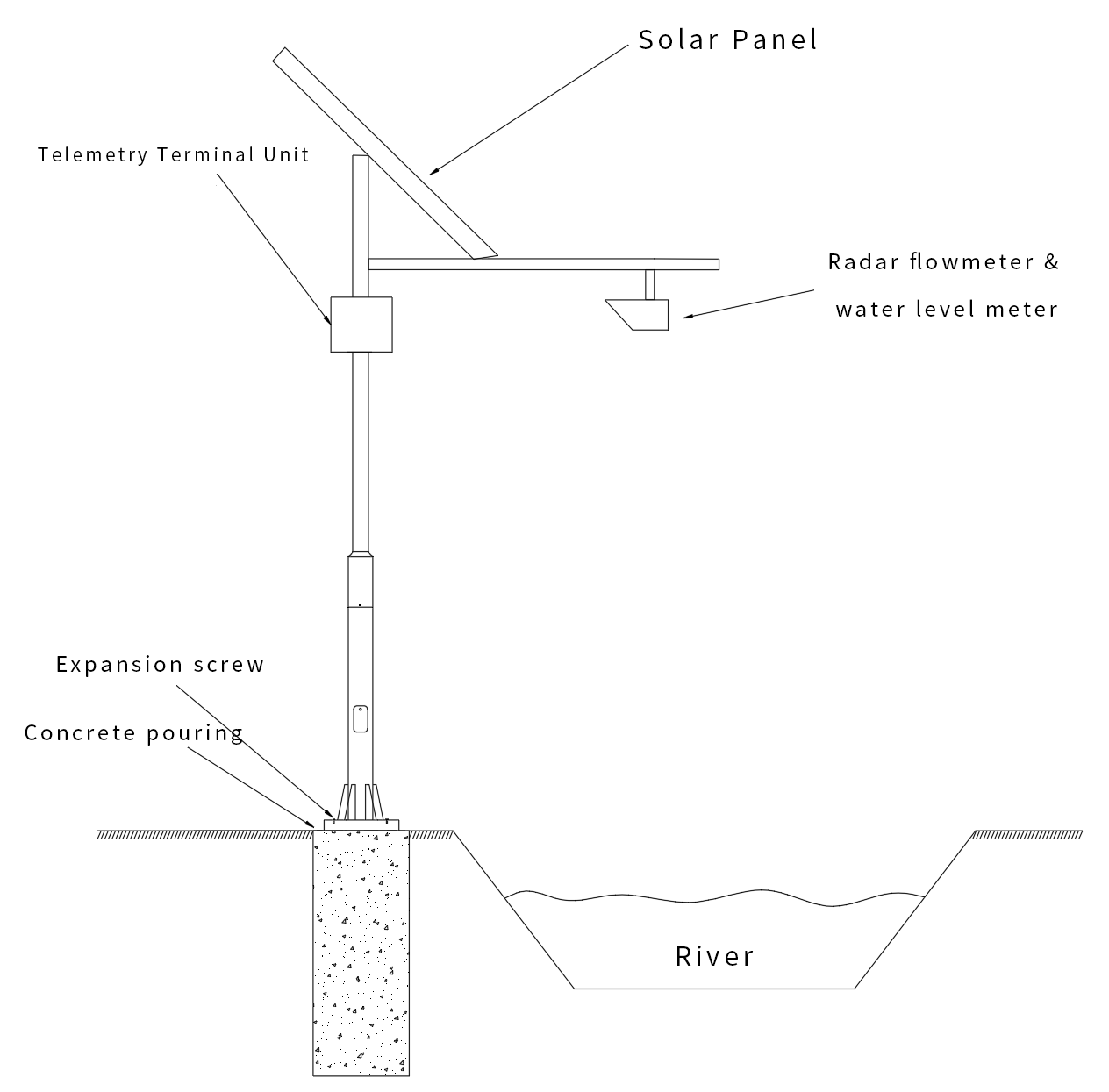

3. Installation Instructions

3.1 Installation Preparation
As the equipment is installed in an open river channel environment, the device is waterproof, and the mounting pole must be constructed with anti-corrosion materials or treated with anti-corrosion measures.
Equipment cabling should be routed internally through the pole; exposed outdoor wiring is prohibited.
When installing the pole, the foundation must be poured with concrete and allowed to fully cure before mounting the pole.
Before finalizing the installation location, verify that on-site communication conditions meet data transmission requirements.
