1. Product Introduction

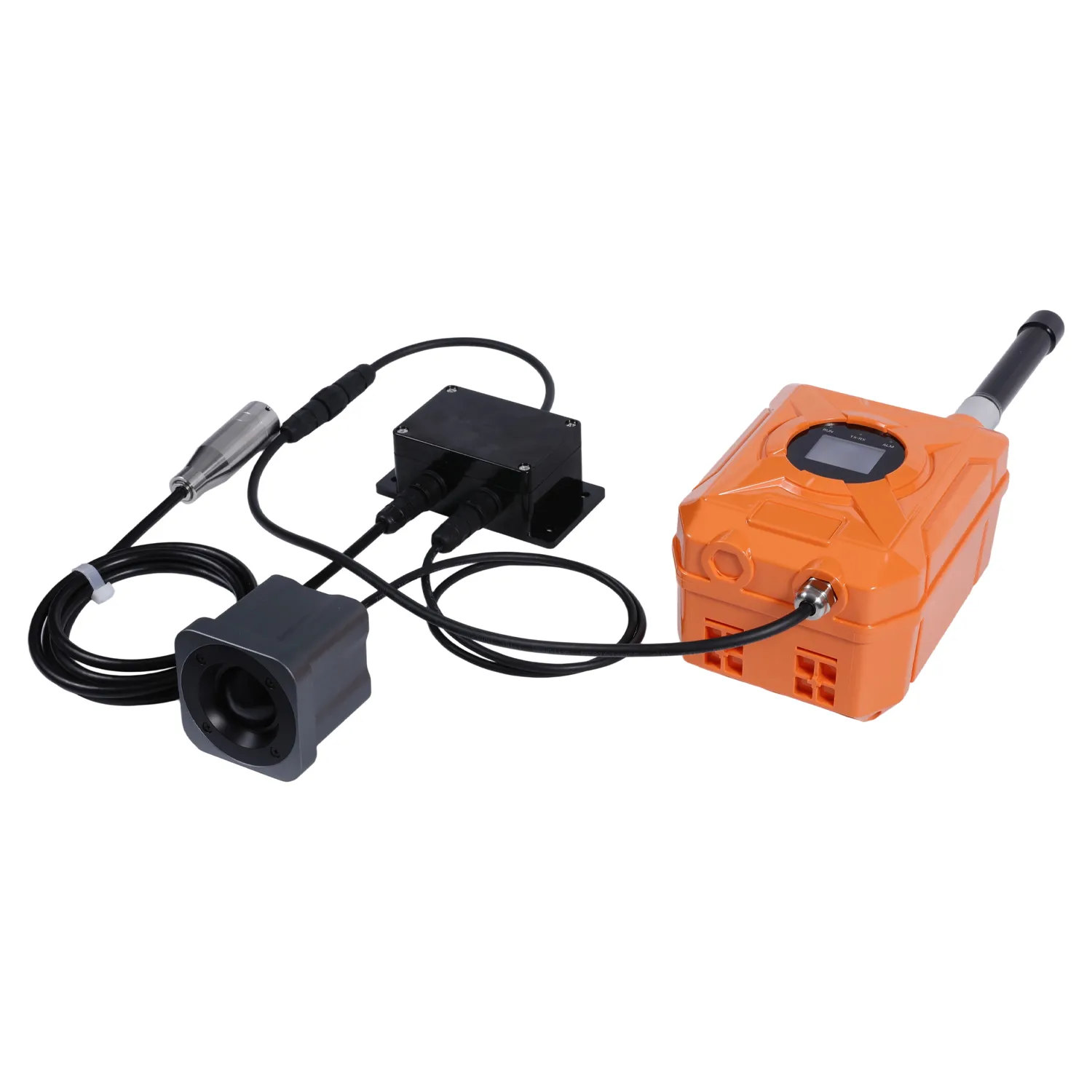

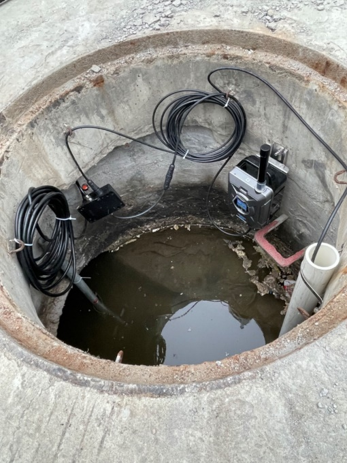

The manhole water level monitor is a battery-powered device featuring ultra-low power consumption, IP68-rated protection, and wireless communication capabilities. It is specifically designed for monitoring applications in harsh environments such as manholes where power supply infrastructure is unavailable

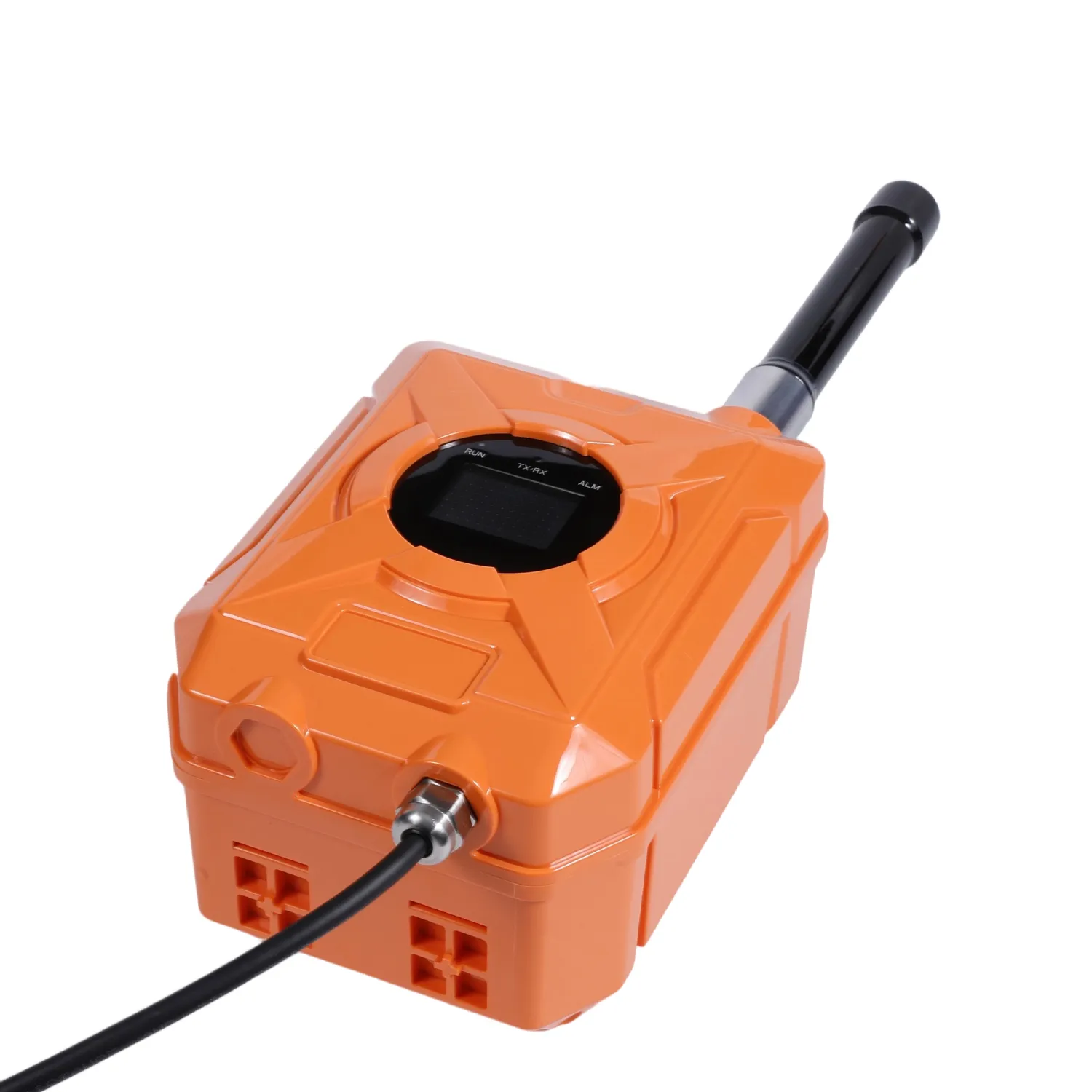

The device is equipped with a high-definition LCD screen for real-time data viewing and supports 4G wireless communication. Users can remotely monitor data through a cloud platform. Powered by long lifespan battery, it features easy installation and stable operation.
2. Product Functions
2.1 Data Sampling
The Manhole Water Level Monitor automatically collects water level data and transmits it to the monitoring platform via 4G communication at scheduled intervals, with additional device status reporting including battery level, system parameters, and signal strength
2.2 Parameter configuration
Parameter configurations can be deployed according to operational requirements. For specific data fields, refer to the "Configuration Data" section in Appendix
2.3 External wake-up
During on-site debugging, when manual data reporting or data viewing is required, swipe a magnet over the upper-right corner of the screen to wake up the device for data sampling. This action will simultaneously update the display panel content and trigger data reporting.
2.4 Data breakpoint resume
The inspection well liquid level monitor adopts intelligent design, large buffer area design and dynamic division technology, which can store alarm data, store data after network disconnection, and automatically upload stored data after communication recovery to ensure systematization and continuity of monitoring data.The manhole water level monitor employs an intelligent design with a high-capacity buffer and dynamic partitioning technology. It stores data during network outages and automatically uploads the retained data when communication resumes, ensuring continuity of monitoring system data.
2.5 Remote operation and maintenance
the inspection well liquid level monitor can be equipped with a remote operation and maintenance platform, which can realize remote operation and maintenance management of the equipment, realize the whole process monitoring of the operation state of the equipment, and ensure the normal operation of the equipment.The manhole water level monitor can be integrated with a remote O&M platform, enabling remote operation and maintenance of the device with full-process status monitoring, ensure the device uninterrupted normal operation.
1. Wide applicability across multiple operational environments.
2. Supports real-time alerting and remote device configuration.
3. Ultra-low power consumption and long lifespan.
4. With an IP68 protection rating，waterproof and moisture-resistant.
5. Data transmission employs 4G wireless communication.

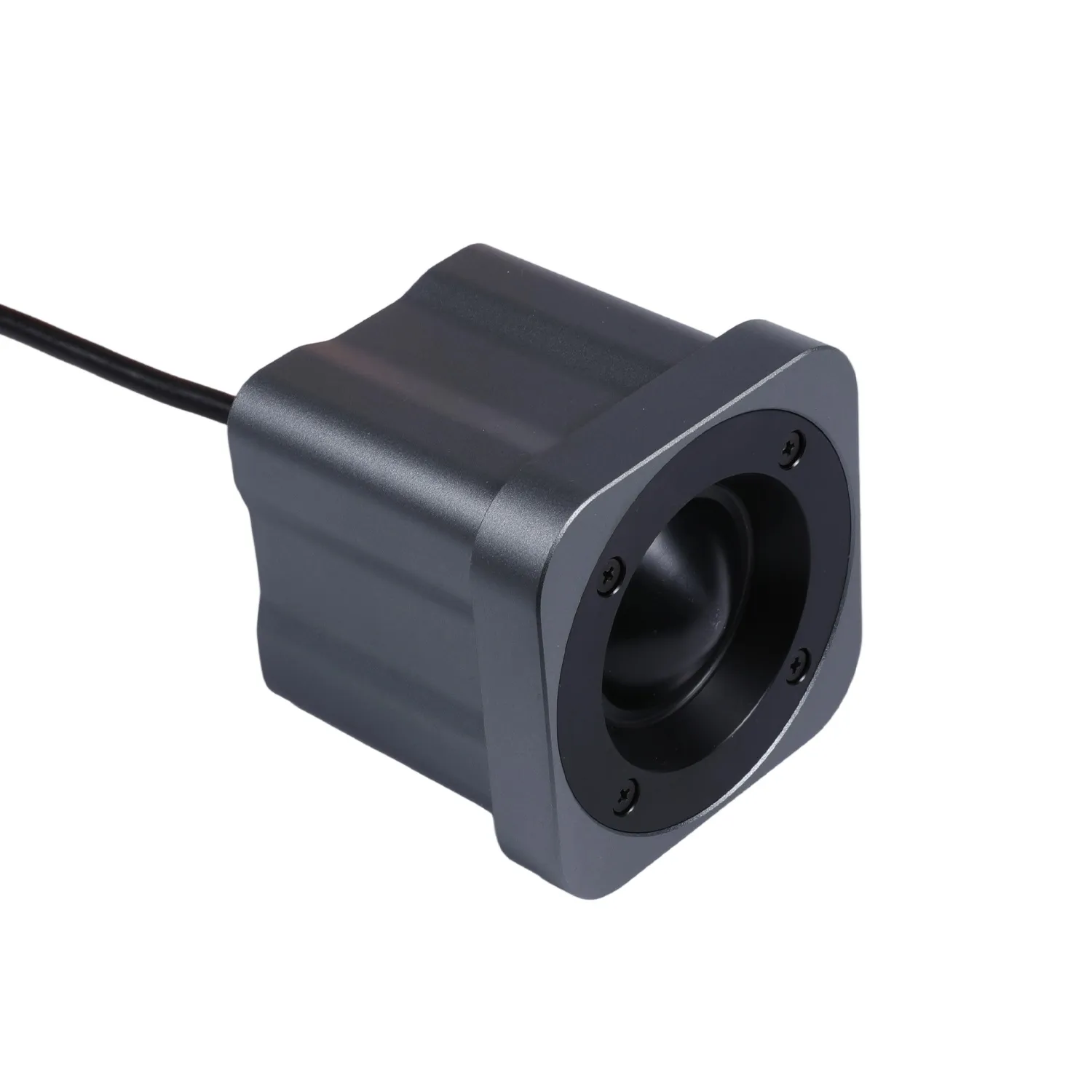

6. Non-contact measurement effectively reduces the impact of sediment accumulation, debris, and other factors on the equipment, thereby reducing maintenance frequency.
